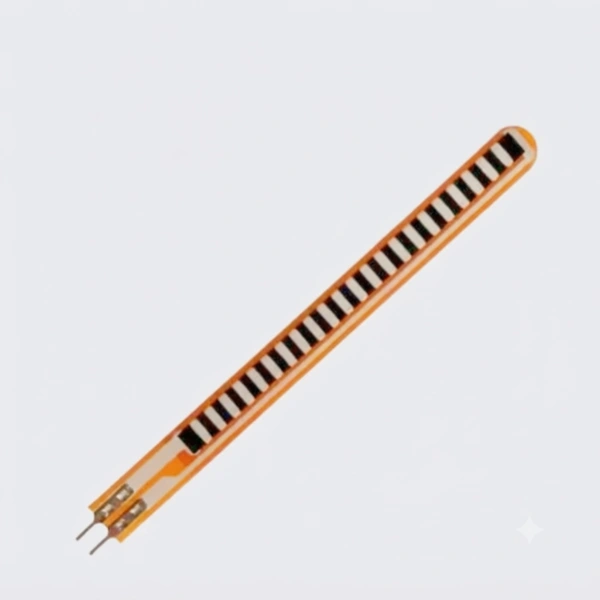

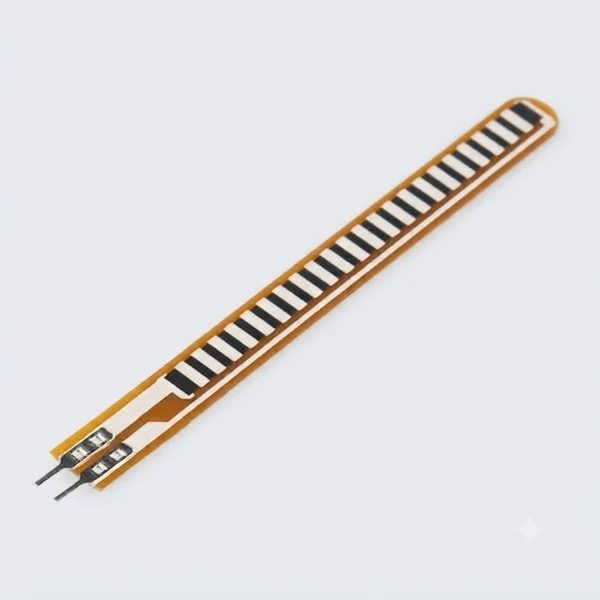

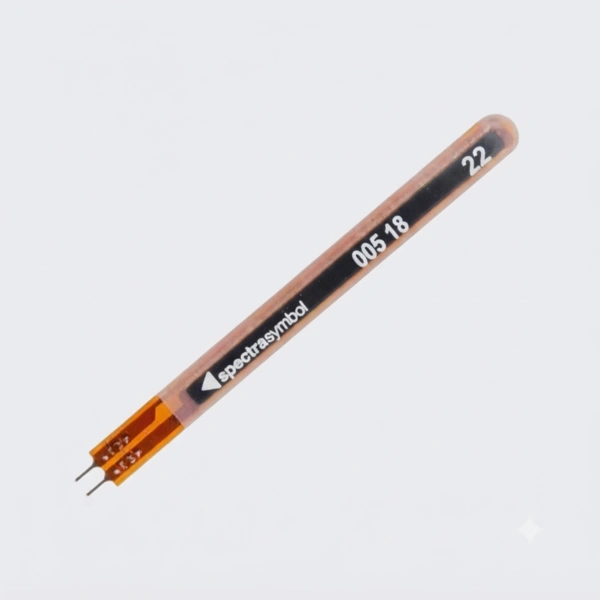

2.2 Inch Flex Sensor – 10KΩ Resistive Bend Sensor

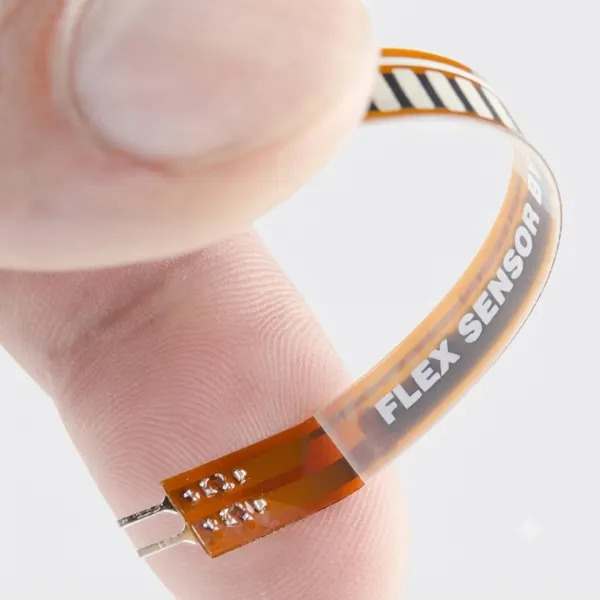

A resistive bend sensor designed to detect angular deflection by varying its resistance. When bent, the resistance increases, especially when the metal pads are positioned on the outer side of the bend
Non-returnable
Choose Quantity:
Product Details
It features a 10KΩ nominal flat resistance and supports up to 0.5W continuous power. With 2.54 mm pin spacing, it is breadboard-friendly and easy to integrate into microcontroller-based systems. Ideal for robotics, wearable devices, gesture detection, and motion control applications.
Resistive bend sensing technology

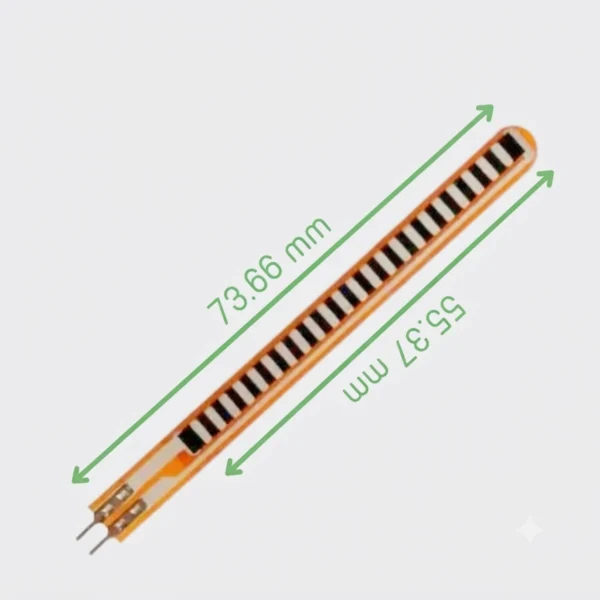

2.2 inch flexible sensing length
10KΩ nominal flat resistance ±30%
Resistance doubles at 180° bend
0.5W continuous power rating
1W peak power capacity
2.54 mm pin spacing
Breadboard-compatible connector
Passive analog output
Lightweight and low-profile design
