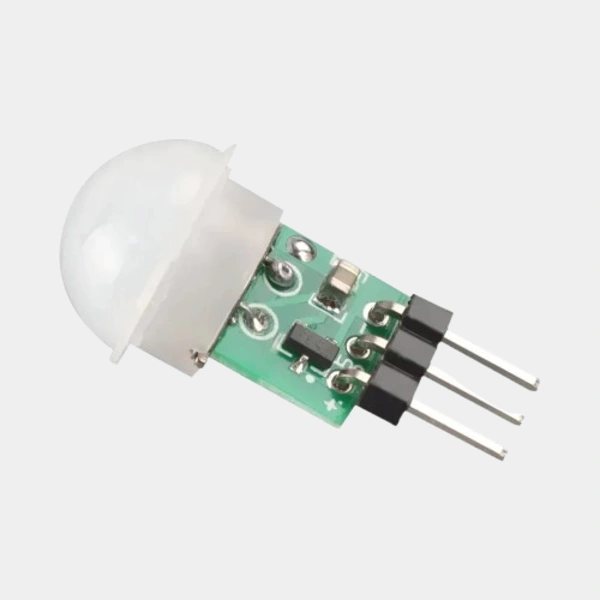

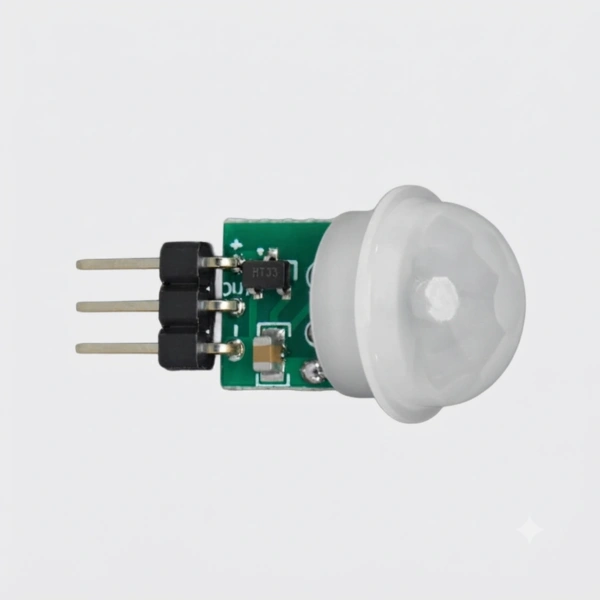

AM312 Mini PIR Motion Sensor
A compact passive infrared sensor designed to detect motion within a 3–5 meter range and a 100-degree cone angle
Non-returnable
Choose Quantity:
Product Details
Operating at DC 2.7–12V with static power consumption below 0.1mA, it features a 2-second delay and repeatable trigger mode. The sensor is compatible with a wide range of electronic projects and microcontroller platforms, offering reliable performance in temperatures from -20 °C to +60 °C. Its small PCB (10 mm × 8 mm) and miniature lens facilitate easy integration into space-constrained designs. Sensor Type: Passive infrared (PIR) for motion detection.
- Detection Range: 3–5 meters with ≤100° cone angle.

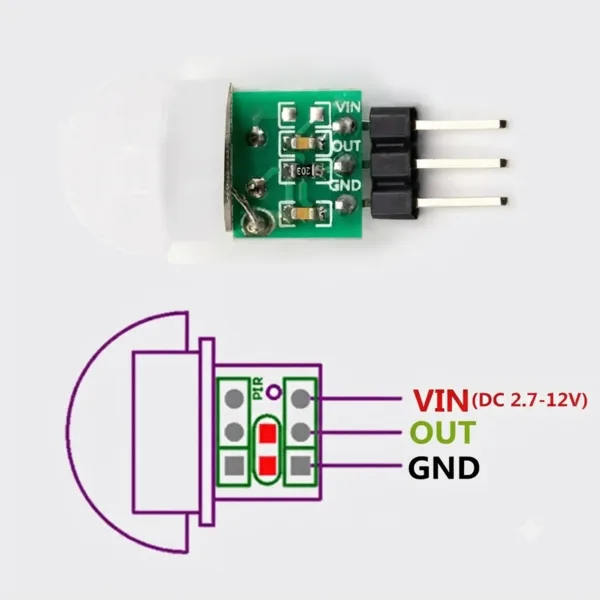

- Operating Voltage: DC 2.7–12V.
- Power Consumption: Static current <0.1 mA.
- Delay Time: 2 seconds; configurable repeatable trigger mode.
- Operating Temperature: -20 °C to +60 °C.

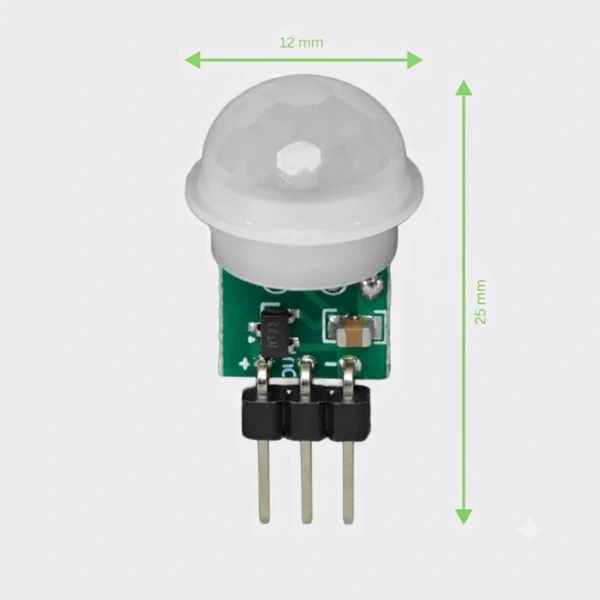

- PCB Dimensions: 10 mm × 8 mm for compact integration.

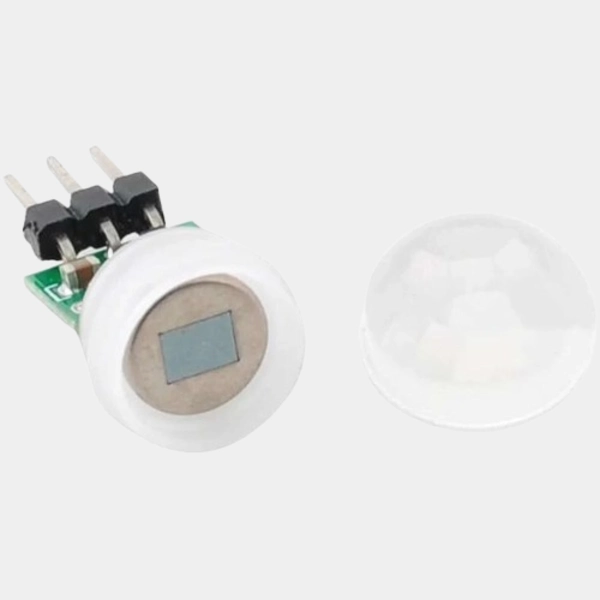

- Module Lens: Small lens compatible with space-constrained designs
