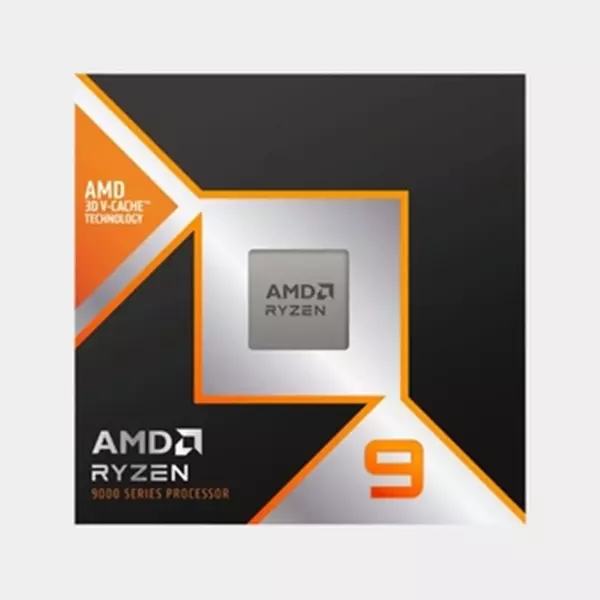

AMD Ryzen 9 9950X3D AM5 Gaming and Content Creation Processor
AMD Ryzen 9 9950X3D AM5 Gaming and Content Creation Processor | 16 Cores and 32 Threads | 16 MB L2 Cache and 128 MB L3 Cache | 4.3GHz Base Clock | Up to 5.7 GHz Max Boost Clock | DDR5 Memmory | AMD Radeon Graphics
Non-returnable
Choose Quantity:
Product Details
Brand: AMD
Type: Desktop Processor
Model: AMD Ryzen 9 9950X3D
Series: Ryzen 9000 Series
Form Factor: Desktops , Boxed Processor
Processor Architecture: Zen 5
CPU Cores: 16
Threads: 32
Max. Boost Clock: Up to 5.7 GHz
Base Clock: 4.3 GHz
Cache:L1: 1280 KB | L2: 16 MB | L3: 128 MB
Default TDP:170W
Processor Technology for CPU Cores:TSMC 4nm FinFET
Processor Technology for I/O Die:TSMC 6nm FinFET
CPU Socket:AM5
Supporting Chipsets:A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology:Precision Boost 2
Instruction Set:x86-64
Supported Extensions:AES , AVX512 , AVX2 , AVX , FMA3 , MMX-plus , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64
OS Support:Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Native USB 3.2 Gen 2 (10Gbps):4
Native USB 2.0 (480Mbps):1
PCI Express® Version:PCIe® 5.0
Native PCIe® Lanes (Total/Usable):28 , 24
NVMe Support:Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type:DDR5
Memory Channels:2
Max. Memory:256 GB
System Memory Subtype:UDIMM
Max Memory Speed:2x1R: DDR5-5600 | 2x2R: DDR5-5600 | 4x1R: DDR5-3600 | 4x2R: DDR5-3600
Graphics Model:AMD Radeon™ Graphics
Graphics Core Count:2
Graphics Frequency:2200 MHz
Features:USB Type-C DisplayPort Alternate Mode, ECC Support, AMD Ryzen Master Support, Curve Optimizer Voltage Offsets, Precision Boost Overdrive, AMD EXPO Memory Overclocking Technology, Unlocked for Overclocking, Multithreading (SMT)
