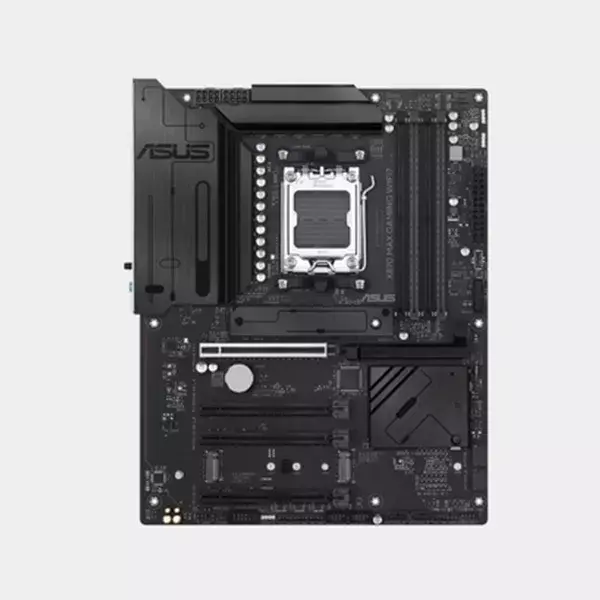

ASUS X870 Max Gaming WiFi7 Motherboard

Brand: Asus

Type: Motherboard

Model Number:: X870 MAX GAMING WIFI7 (90MBLY0-M0EAY0 )

CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset: AMD X870 Chipset

Memory: 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC, Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP)

Graphics Outputs: 1 x HDMI™ Port | 2 x USB4® (40Gbps) Ports with USB Type-C® Display Outputs

Maximum Resolution: HDMI 2.1: Up to 4K@60Hz | DisplayPort 1.4a via USB4®: Up to 4K@60Hz

Storage: 3 x M.2 Slots | 4 x SATA 6Gb/s Ports | M.2_1 PCIe 5.0 x4 / 4.0 x4 Support | M.2_2 PCIe 4.0 x4/x2 Support | M.2_3 PCIe 4.0 x4 Support | Supports AMD Ryzen™ 9000, 8000 & 7000 Series | USB4® Bandwidth Sharing Support | PCIEX16(G3) & SATA Shared Bandwidth

RAID Support: AMD RAIDXpert2 Technology | Ryzen™ 9000 Series: RAID 0/1/5/10 | Ryzen™ 8000 Series: RAID 0/1 | Ryzen™ 7000 Series: RAID 0/1/10

Ethernet: 1 x Realtek 2.5Gb Ethernet ASUS LANGuard

Wireless & Bluetooth: Wi-Fi 7 | 2x2 Wi-Fi 7 (802.11be) | Supports 2.4/5/6GHz Frequency Bands | Up to 160MHz Bandwidth & 2.9Gbps Transfer Speed | Bluetooth® v5.4 | Windows 11 & Wi-Fi 6E/7 Support | Windows 10 Supports Wi-Fi 6 Only

USB Connectivity: 10 x Rear USB Ports | 7 x Front USB Ports | 2 x USB4® 40Gbps Type-C® | USB 20Gbps Type-C® Support | USB 10Gbps & 5Gbps Type-A Ports | USB 2.0 Connectivity | USB Type-C® Power Delivery Up to 5V/3A

Audio: Realtek 7.1 Surround Sound HD Audio CODEC | Supports 24-Bit/192kHz Playback | Jack-Detection & Multi-Streaming Support | Front Panel Jack-Retasking | Audio Shielding | Premium Audio Capacitors | Dedicated Audio PCB Layers | HD Audio Front Panel Required for 7.1 Output

Back Panel I/O Ports: 2 x USB4® 40Gbps Type-C® | 1 x USB 10Gbps Type-A | 3 x USB 5Gbps Type-A | 4 x USB 2.0 Ports | 1 x HDMI™ Port | Wi-Fi Module | Realtek 2.5Gb Ethernet Port | 3 x Audio Jacks | BIOS FlashBack™ Button

Internal I/O Connectors: CPU & Chassis Fan Headers | AIO Pump Header | 24-pin & Dual 8-pin Power Connectors | 3 x M.2 Slots | 4 x SATA Ports | USB Type-C®, USB 5Gbps & USB 2.0 Headers | RGB Gen 2 Headers | Audio, TPM & System Headers | Clear CMOS & COM Port Headers

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

Operating System: Windows 11

Form Factor: ATX Form Factor

Features: ASUS 5X Protection III | DIGI+ VRM | SafeSlot | PCIe Q-Release | Q-DIMM & Q-Slot | M.2 & VRM Heatsinks | BIOS FlashBack™ | Pre-Mounted I/O Shield | Aura Sync RGB Headers
