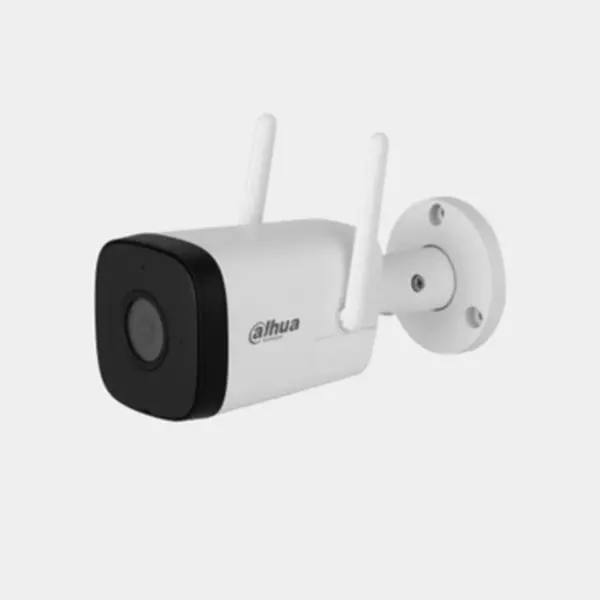

Dahua 4MP WiFi Bullet Network Camera

Type : Smart Camera

Model : IPC-HFW1430DT-STW

Camera Resolution : 2560 × 1440

Megapixel : 4 MP

ROM : 16 MB

RAM : 64 MB

Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s

Scanning System : Progressive

Lens Focal Length : 2.8 mm; 3.6 mm

Max. Aperture : F2.0

Field of View : H: 80.4°, V: 58.1°, D: 104.8°

Close Focus Distance : 2.8 mm: 1.0 m (3.28 ft), 3.6 mm: 1.4 m (4.59 ft)

DORI Distance: Lens : 2.8mm, 3.6mm, Detect : 68.0 m (223.10 ft), 85.2 m (279.53 ft), Observe : 27.2 m (89.24 ft), 34.1 m (111.88 ft), Recognize : 13.6 m (44.62 ft), 17.0 m (55.77 ft), Identify : 6.8 m (22.31 ft), 8.5 m (27.89 ft)

Video Compression : H.264B; H.264; H.264H; H.265

Smart Codec : Smart H.265+; Smart H.264+

Video Frame Rate: Main stream : 2560 × 1440 (1–20 fps), Sub stream: 640 × 480@(1–25 fps) 640 × 480@(1–30 fps)

Stream Capability : 2 streams

Resolution : 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720)

Bit Rate Control : CBR/VBR

Day/Night : Auto (ICR)/Color/B/W

Video Bit Rate : H264: 24 kbps–4096 kbps, H265: 9 kbps–4096 kbps

Audio Built-in MIC : Yes

Built-in Speaker : Yes

Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection ; video tampering; audio detection; intensity change

Network Port : RJ-45 (10/100 Base-T)

Wi-Fi : IEEE802.11b/g/n 2.4–2.4835 GHz; 2.4 G

Wireless Range : Up to 150 m (The performance varies based on actual environment)

User/Host : 6 (Total bandwidth: 36 M)

Storage : Micro SD card (support max. 256 GB)

Power Supply : 12 VDC

Power Consumption : Basic: 2.1 W (12 VDC) Max. (H.265+IR intensity):6.1 W (12 VDC)

Casing: Front cover : Plastic, Rear: Plastic, Bracket: Metal

Dimensions : 180 mm × 83.3 mm × 114.8 mm

Weight : 350.1 g
