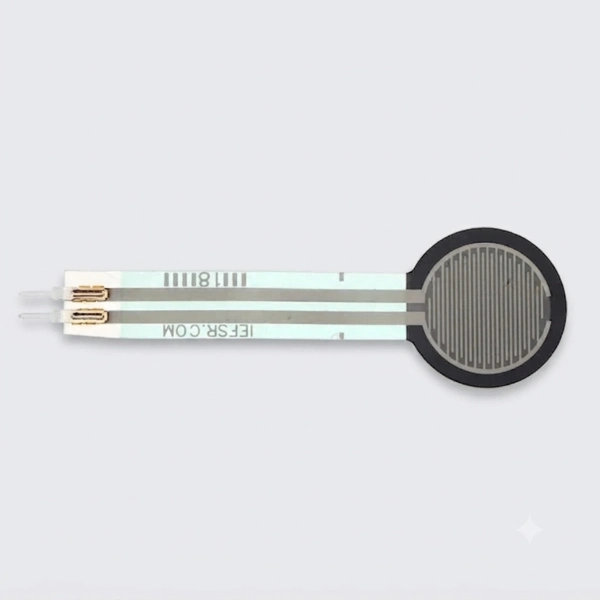

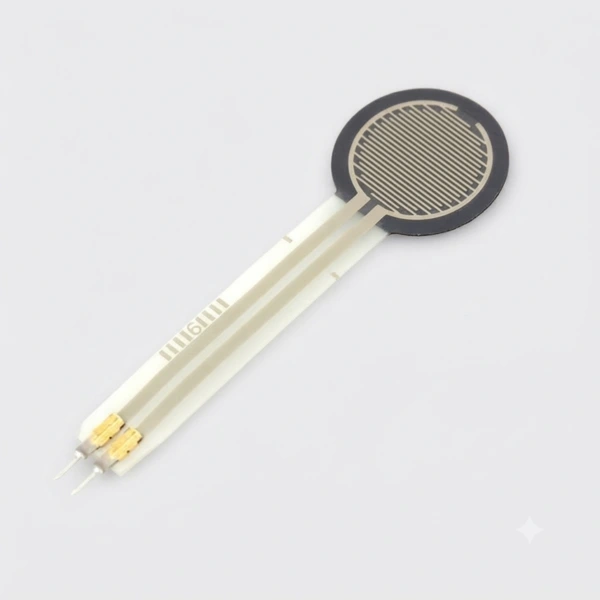

Force Sensitive Resistor 0.5 Inch – 100 g to 10 kg Range
A pressure-sensitive sensor designed to detect applied force through resistance variation
Non-returnable
Choose Quantity:
Product Details
Its resistance decreases as force increases, with a no-load resistance greater than 1 MΩ. The sensor features a 0.5 inch circular sensing area and a 2.54 mm pin pitch for direct breadboard integration. Built on a flexible substrate with peel-and-stick backing, it enables easy mechanical mounting. Ideal for pressure detection, touch sensing, and embedded input applications in prototyping and educational projects.
- 0.5 inch circular sensing area
- Force range from 100 g to 10 kg
- Resistance decreases with applied pressure
- 2.54 mm pin pitch for breadboard use
- Flexible polymer thick film construction

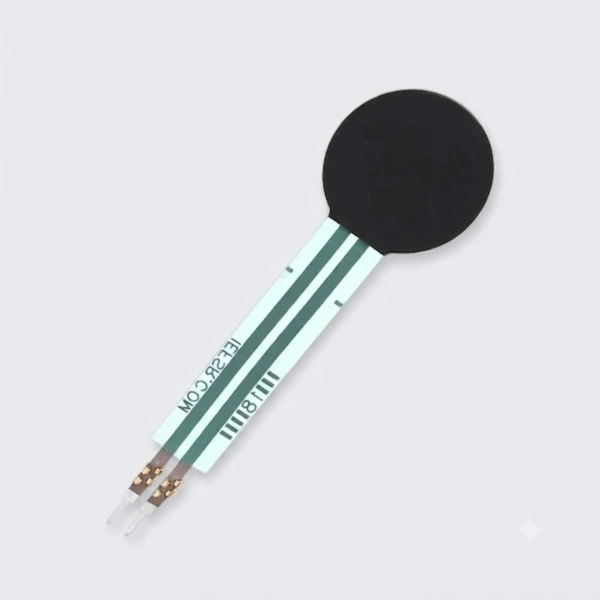

- Peel-and-stick rubber backing
- Fast response to dynamic force changes
- Low power passive sensing element
- Compact 60.3 × 19.1 mm overall size
- Lightweight and low profile design
- Suitable for analog voltage divider circuits
