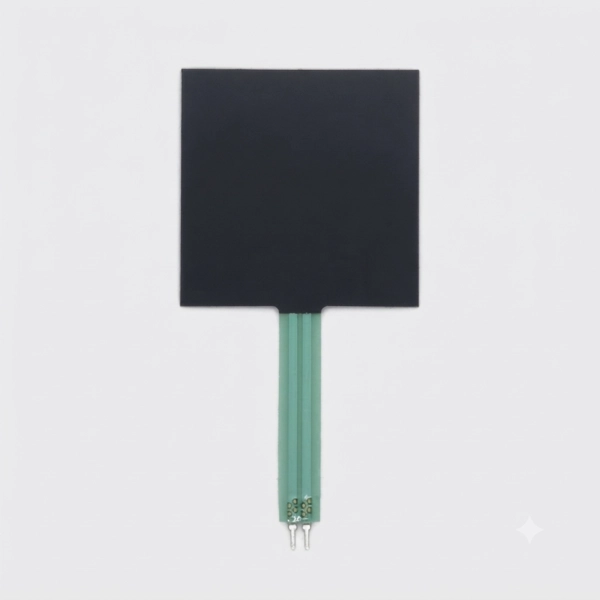

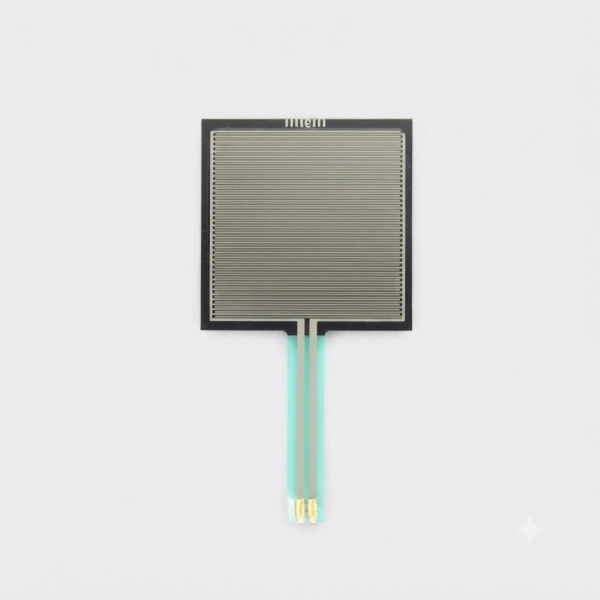

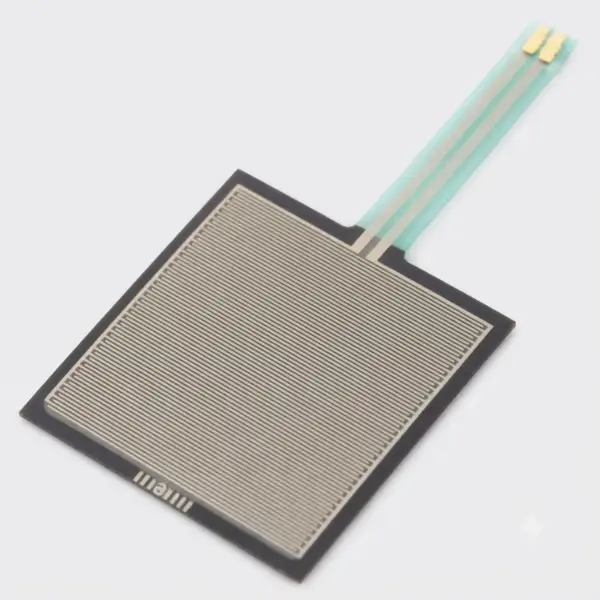

Force Sensitive Resistor – 1.75 × 1.5 Inch Square Sensing Area
A thin-film pressure sensor designed to detect applied force through resistance variation
Non-returnable
Choose Quantity:
Product Details
It features a 1.75 × 1.5 inch square sensing area and provides resistance values greater than 1 MΩ with no load, decreasing proportionally as force increases from 100 g to 10 kg. The sensor includes 0.1 inch pitch pins for direct breadboard integration and a peel-and-stick backing for secure mounting. Built for simple force detection, it is suitable for pressure sensing, touch interfaces, and embedded control applications where relative force measurement is required.

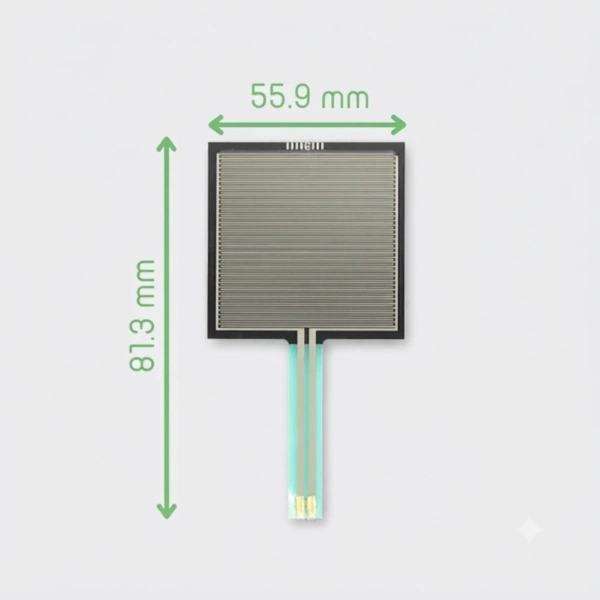

- Square 1.75 × 1.5 inch sensing area
- Force range from 100 g to 10 kg
- Resistance >1 MΩ with no applied force
- Resistance decreases with increasing pressure
- 0.1 inch pitch breadboard-compatible pins
- Thin and flexible polymer construction
- Peel-and-stick adhesive backing
- Fast response to applied force
- Lightweight and low-profile design
- Simple voltage divider integration
- Suitable for analog input measurement
- Designed for relative force detection
