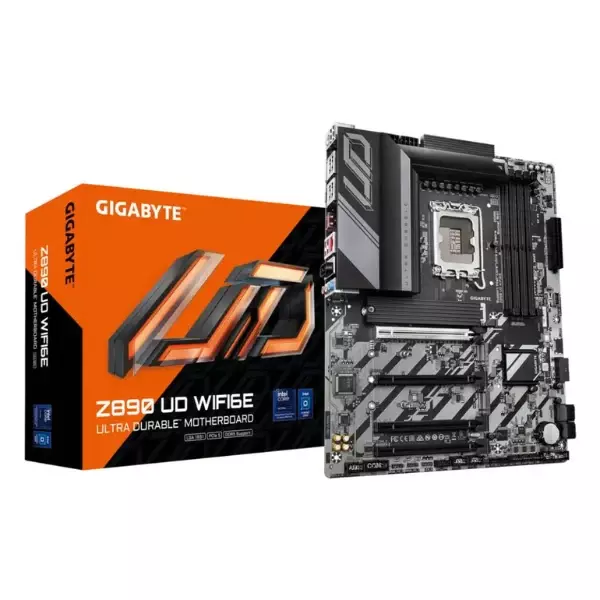

Gigabyte Z890 UD Wifi 6E DDR5 LGA 1851 ATX

CPU: Intel

Socket: LGA 1851

Back Panel I/O:

4 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

1 x DisplayPort (Note)

4 x USB 3.2 Gen 1 ports

1 x USB4® USB Type-C® port (DisplayPort (Note))

1 x USB 3.2 Gen 2 Type-A port (red)

1 x RJ-45 port

2 x SMA antenna connectors (2T2R)

3 x audio jacks

Memory Slots:

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Storage Expansion:

CPU:

- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Internal I/O:

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

2 x system fan headers

2 x system fan/water cooling pump headers

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)

1 x serial port header

1 x power button

1 x reset button

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

Audio:

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Wireless:

Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard

Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Software: Windows 11 64-bit

Dimensions: ATX
