HC-SR501 PIR Motion Sensor
A passive infrared module designed to detect human motion by sensing changes in infrared radiation
Non-returnable
Choose Quantity:
Product Details

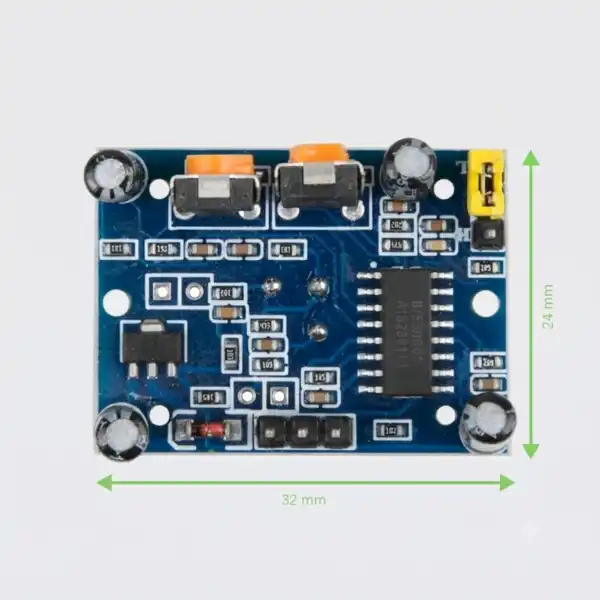

It provides a digital output of 3.3 V (high) and 0 V (low), with an adjustable sensitivity up to a 6 m sensing distance and a detection angle of 110°. The module operates within a wide voltage range of 4.5–20 V and features adjustable output delay of approximately 2–4 seconds. With a low quiescent current of 50 µA and compact 32 × 24 mm dimensions, it is suitable for low-power electronic systems. Typical applications include security systems, automatic lighting, occupancy detection, and microcontroller-based projects. Passive Infrared (PIR) sensing element for human motion detection.
- Adjustable sensitivity with maximum sensing distance up to 6 m
- Detection angle of up to 110° for wide area coverage
- Digital output levels of 3.3 V (HIGH) and 0 V (LOW)
- Operating voltage range from 4.5 V to 20 V
- Adjustable output delay time of approximately 2–4 seconds
- Low quiescent current consumption of 50 µA
