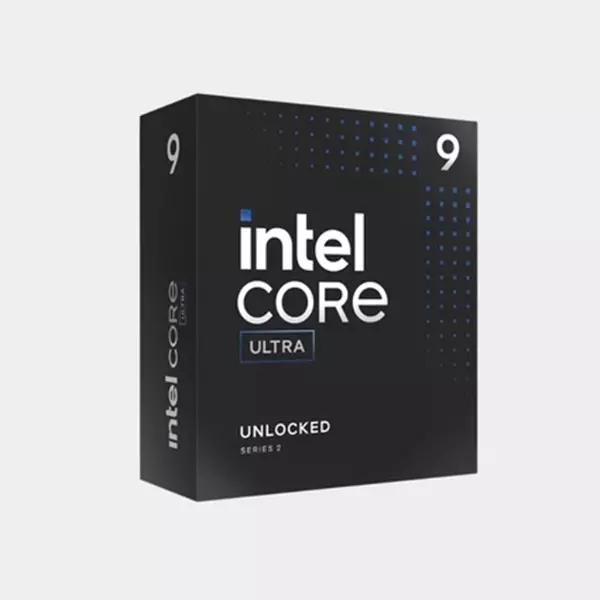

Intel Core Ultra 9 Processor
Intel Core Ultra 9 Processor 285K | 24-Core (8 P-Cores + 16 E-Cores) | 36MB Cache | Up to 5.7 GHz Turbo | DDR5-6400 Support | FCLGA1851 Socket
Non-returnable
Choose Quantity:
Product Details
Brand: Intel
Type: Processor
Model: Core Ultra 9 285K
Processor Number: 285K
Total Cores and Threads: 24
Performance-Cores: 8
Efficient-Cores: 16
Max Turbo Frequency: 5.7 GHz
Performance-Core Max Turbo Frequency: 5.5 GHz
Efficient-Core Max Turbo Frequency: 4.6 GHz
Performance-Core Base Frequency: 3.7 GHz
Efficient-Core Base Frequency: 3.2 GHz
Cache: 36 MB Intel® Smart Cache
Total L2 Cache: 40 MB
Processor Base Power: 125 W
Maximum Turbo Power: 250 W
Intel® Deep Learning Boost: Yes (Intel® DL Boost) on CPU
CPU Lithography: TSMC N3B
Max Memory Size (dependent on memory type): 256 GB
Memory Types: Up to DDR5 6400 MT/s
Memory Channels: 2 (Max)
NPU Peak TOPS (Int8): 13
NPU Name: Intel® AI Boost
Direct Media Interface (DMI) Revision: 4
Max # of DMI Lanes: 8
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations: Up to 1x16+2x4, 2x8+2x4,1x8+4x4
Max # of PCI Express Lanes: 24
Sockets Supported: FCLGA1851
Thermal Solution Specification: PCG 2020A
Max Operating Temperature: 105 °C
Instruction Set: 64-bit
