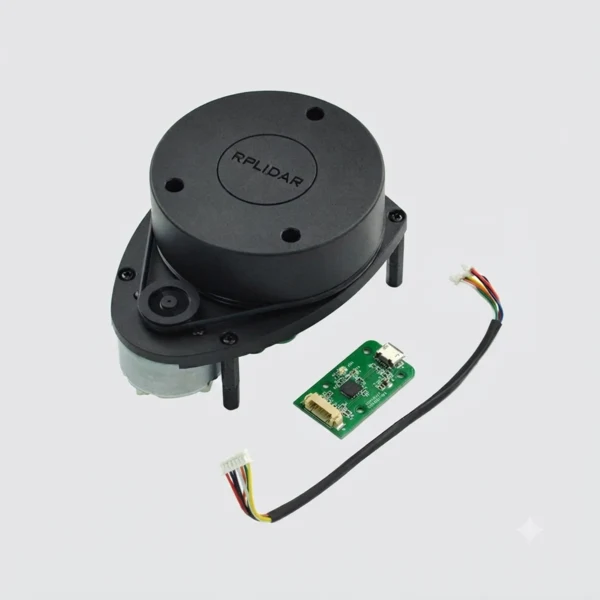

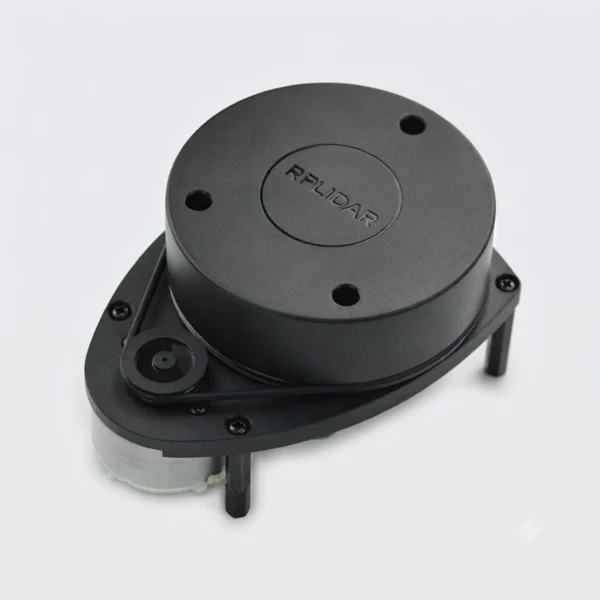

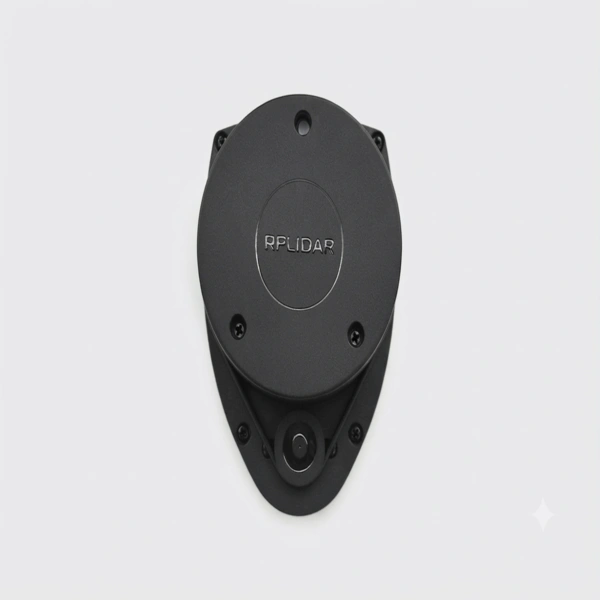

RPLIDAR A1M8-R6 360° LiDAR Laser Scanner - 12m Range with UART/USB Interface
Accurate distance measurement and environmental mapping
Non-returnable
Choose Quantity:
Product Details
It operates over a 0.15–12 m range with a rotational frequency of 5–10 Hz, capturing up to 8,000 samples per second. The device uses a Class 1 laser and triangulation technology to provide precise and reliable data for applications such as SLAM, obstacle avoidance, and autonomous navigation. Compact and lightweight, it supports UART (3.3 V TTL) and USB interfaces, enabling integration with robotic platforms, drones, and smart systems while maintaining low power consumption.
- 360° Scanning: Captures full environmental data for complete mapping and navigation.
- Scanning Range: Measures distances from 0.15 m up to 12 m with high accuracy.
- Rotational Frequency: Adjustable rotation speed from 5 to 10 Hz for flexible data collection.
- Sample Rate: Up to 8,000 samples per second for fast and precise measurements.
- Laser Sensor: Class 1 infrared laser (785 nm) for safe, reliable detection.
- Communication Interface: Supports UART (3.3 V TTL) and USB via adapter.

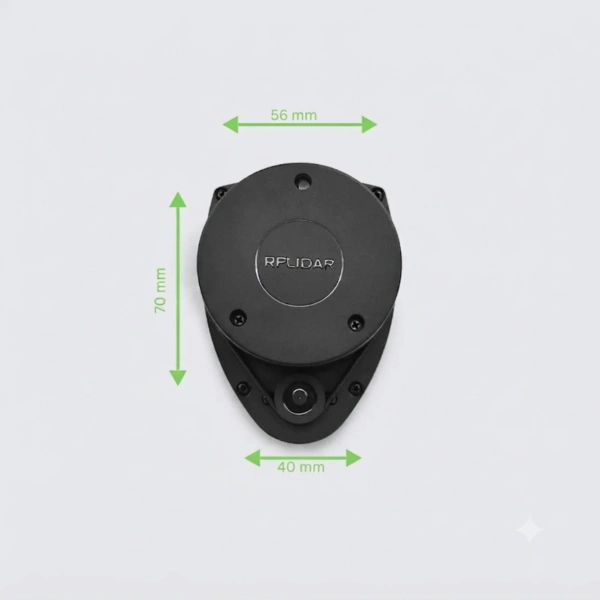

- Compact Design: Lightweight module (~190 g) for easy integration into robotic platforms.
- Power Consumption: Low energy operation ≤0.5 W suitable for battery-powered systems.
