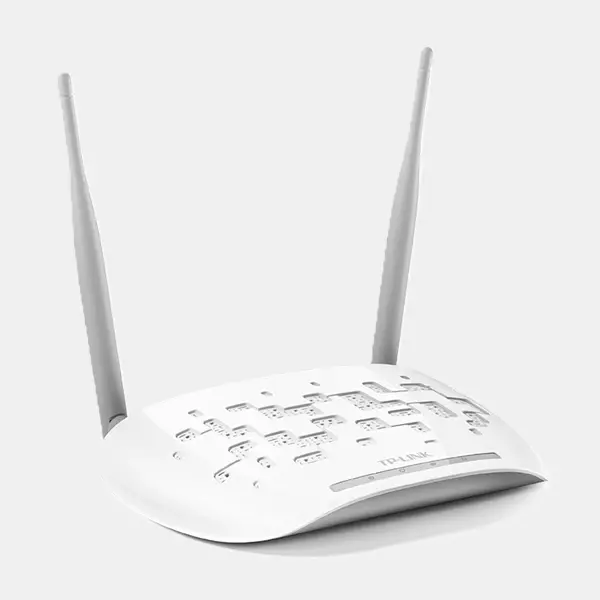

TP-Link TL-WA801ND 300Mbps Wireless N Access Point
The TP-LINK Wireless N Access Point TL-WA801ND is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet enabled devices such as game consoles, digital media adapters, printers, or network attached storage devices to a wireless network.
Non-returnable
Choose Quantity:
Product Details
Interface: One 10/100M Ethernet Port(RJ45) Support Passive PoE
Button: Power On/Off Button WPS Button Reset Button
External Power Supply: 9VDC / 0.6A
Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ): 7.1 ×4.9× 1.4 in. (181 ×125 ×36mm)
Antenna Type: 2*5dBi Detachable Omni Directional (RP-SMA)
Frequency : 2.4-2.4835GHz
Signal Rate: 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity: 270M: [email protected]% PER 130M: [email protected]% PER 108M: [email protected]% PER 54M: -68dBm@10% PER 11M: [email protected]% PER 6M: [email protected]% PER 1M: [email protected]% PER
Transmit Power : <20dBm(EIRP)
Wireless Modes : AP Mode Multi-SSID Mode Client Mode Repeater Mode (WDS/Universal) Bridge with AP Mode
Wireless Functions: Enable/Disable Wireless Radio WDS Bridge MAC Address Filter
Wireless Security: 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Quality of Service: WMM
Management: SNMP
Advanced Functions: Up to 30 meters Passive PoE is supported
