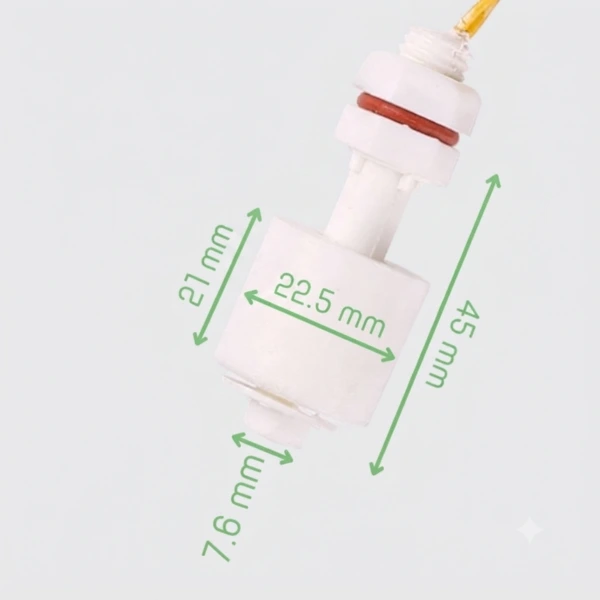

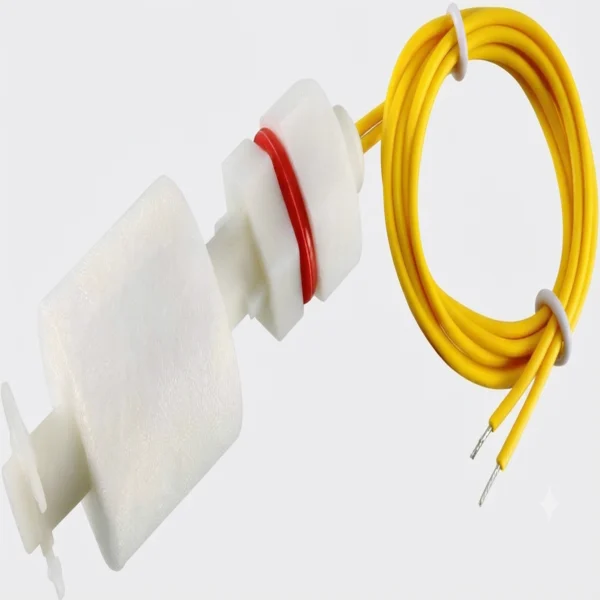

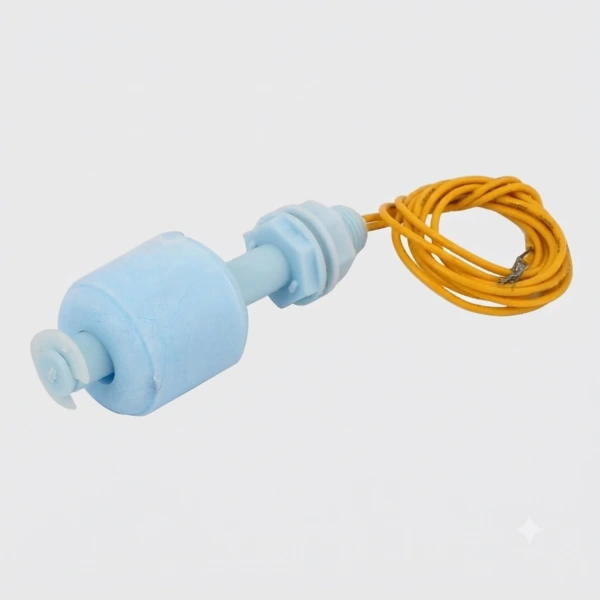

Water Level Float Switch ZP4510 – PP Vertical Type
A mechanical liquid level sensor designed for reliable water and fluid detection in tanks and reservoirs
Non-returnable
Choose Quantity:
Product Details
It operates as a dry contact reed switch, changing state when the float rises with liquid level. Rated for up to 220V AC/DC switching voltage and 0.5A switching current, it provides stable performance in low-power control circuits. The PP float and body construction ensures corrosion resistance and submersible operation. Ideal for pump control, alarms, and integration with Arduino, Raspberry Pi, and industrial controllers.
- Magnetic reed switch mechanism
- Normally closed contact when floating
- Dry contact output interface
- 220V AC/DC maximum switching voltage
- 0.5A maximum switching current
- 10W maximum contact rating
- PP float and body construction
- Fully submersible vertical design
- 300V AC/DC breakdown voltage
- Wide temperature range -10°C to +85°C
- 36 cm pre-attached cable
- Compatible with Arduino and Raspberry Pi
